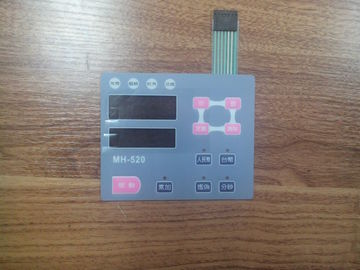

Custom Membrane Switch Panel 3M467 & 3M468 With SGS , Rohs

Custom Membrane Switch Panel 3M467 & 3M468 With SGS , Rohs
Custom Membrane Switch Panel 3M467 & 3M468 With SGS , Rohs

Duży Obraz :  Custom Membrane Switch Panel 3M467 & 3M468 With SGS , Rohs

Szczegóły Produktu:
Place of Origin: Dongguan, Guangdong, China
Nazwa handlowa: HHC
Orzecznictwo: ISO9001:2008, SGS,Rohs
Model Number: HC-MSW-002
Zapłata:
Minimum Order Quantity: 100 pieces
Cena: Negotiable
Packaging Details: Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or according to the customer
Delivery Time: Around 7 business days after deposit received
Payment Terms: T/T
Supply Ability: 100000pieces Per Month
Szczegółowy opis produktu
Material: PET /PC Adhesive: 3M467 & 3M468
feature: dust-proof , waterproof Customization: custom membrane switch
certificate: SGS , Rohs Insulation resistance: <100MΩ,250V DC
High Light:

custom membrane switch

,

tactile membrane switch

Household Appliances Flexible Membrane Switch Panel 0V - 30V DC













  1. overlay material : PET /PC
  2. adhesive: 3M467 & 3M468  or as per request
  3. High life time :>1million times
  4. Pass:ISO9001:2008 RoHS.SGS
  5. Membrane Switch Overlay
  6. Custom made OEM/ODM
  7. Rasing available
  8. Membrane switch faceplate
  9. Withstand millions of cycles
  10. perfect exterior
  11. metal dome or silicone keypad is also available.
  12. Connector with housing.





2.Special request for OEM:


Membrane Switch Overlay
1) Custom made OEM/ODM
2) Rasing available
3) Membrane switch faceplate
4) Withstand millions of cycles
5)perfect exterior
6)metal dome or silicone keypad is also available.
7) Silicone keypad assemble available
8) LED or LCD assemble also available.




3.Applications:


Our membrane switches are widely used in :
•Medical Equipment
•Telecommunications apparatus
•Telephone systems
•Household appliances
•Security systems
•Point of sale apparatus





4. Electronic Charateristics:

wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree





5.Specifications:


1 material : PET /PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality




Custom Membrane Switch Panel 3M467 & 3M468 With SGS , Rohs 0




6. Competitive Advantage:


1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7.Customized specification is available and keys can make different shapes
