High definition H.264 4 Channel mobile video recorder vehicle with PAL , NTSC

High definition H.264  4 Channel mobile video recorder vehicle with PAL , NTSC
High definition H.264  4 Channel mobile video recorder vehicle with PAL , NTSC High definition H.264  4 Channel mobile video recorder vehicle with PAL , NTSC

Duży Obraz :  High definition H.264 4 Channel mobile video recorder vehicle with PAL , NTSC

Szczegóły Produktu:
Place of Origin: Shenzhen, China
Nazwa handlowa: Vicord
Orzecznictwo: CE, FCC
Model Number: MCS1NNN
Zapłata:
Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Szczegółowy opis produktu
Operating system: Embedded LINUX vdieo standards: PAL(625line,50f/s);NTSC(525line,60f/s)
vdieo compression: H.264(High Profile) play quality: D1/Half-D1/CIF/QCIF
audio compression: G.711A bidrectional talk: supported
record storage: SD
High Light:

hdd mobile dvr

,

car dvr with gps

H.264  4 Channel Video Input Mobile DVR Recorder With SD Card Storage Motion Detect


Product Features:



  1. Special function:GPSdata,wide voltage,mobile DVR player,SDK etc.
  2. Compression algorithm ideal: H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology
  3. Playback quality:support 4ch D1 real-time recording,2ch Dl real-time playback.
  4. Main Stream:Main stream for local storage, ensure image quality
  5. Display: support TV output
  6. Operation interface:similar to Windows operating style
  7. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.
  8. Others:Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
  9. 4 channel Video Input
  10. support 1*SD Card Storage;( SD maximum 64G)



SPECIFICATIONS





Model

MCS1NNN

system

Main processor

Industrial Embedded Microcontrollers

Operating system

Embedded LINUX

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(High Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time(default CIF)

decode capacity

2ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

SD

backup mode

Network backup,USB,USB Burn

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch cable

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

no

alarm output

no

net interface

no

PTZ control

One RS485,one RS232

usb

One USB

Mobile interface

&

functions

GPIO

Support  OSD overlay, storage(optional) etc

GPS

Not Support



others

support delay boot up/shut down,timing boot up/shut down

complement

player

mobile exclusive player,Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output

Power consumption

<10W

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

130(L)*147(W)*36(H)mm

weight

420g

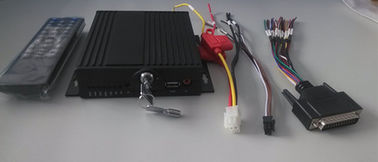

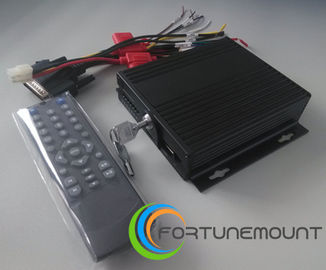

Product Detail:



High definition H.264  4 Channel mobile video recorder vehicle with PAL , NTSC 0



High definition H.264  4 Channel mobile video recorder vehicle with PAL , NTSC 1
