Szczegóły Produktu:
Zapłata:
|
| High Light: | earth leakage circuit breaker,elcb circuit breaker |
||
|---|---|---|---|

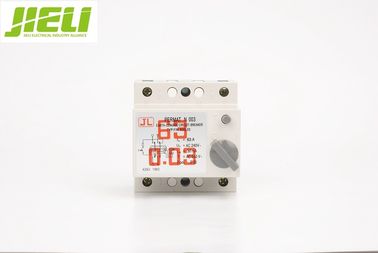

JL-FIN 2P AC type residual current circuit breaker with perfect quality
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
JL-FIN residual current circuit breaker |
|
Type: |
Residual current circuit breaker |
Poles Number: |
2,4P |
Rated Voltage : |
230(220V) |
|
Rated Current : |
16,20,25,32,40,63 |
No.of poles : |
2P,4P |
Installation: |
Din Rail |
|
Rated fuse short current: |
20kA |
Standard : |
IEC 60898 |
Breaking Capacity: |
6000A |
|
Rated frequency : |
50/60HZ |
|
|
|
|
Description:
Residual Current Circuit Breaker with over-current protection (Electronic)
JL-FIN Operated Residual Current circuit breaker provides the function of isolation Switching and earth leakage protection of electrical circuits.
And JL-FIN Operated Residual Current circuit breaker also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical Circuit fault.
JL-FIN Operated Residual Current circuit breaker is conformity with GB16917.1,IEC60898-1 standards.
Applications:
JL-FIN Operated Residual Current circuit breaker serves in the line of AC 50HZ,rated voltage 230V and rated current up to 40A to automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value.
JL-FIN Operated Residual Current circuit breaker can effectively protect personal security and avoid the damage to equipments.
JL-FIN Operated Residual Current circuit breaker can also function as overload and shortcircuit protection and unfrequent changeover of line under normal condition.
Specifications:
|
Type |
JL-FIN residual current circuit breaker |
|
Number of poles |
2P ,4P |
|
Rated Current(In) |
6A,10A,16A,25A,40A,63A,80A,100A |
|
Rated residual operating current( In) |
10mA,30mA,100mA,300mA,500mA |
|
Rated residual non-operation Current( Ino) |
0.5 IIn, 5 IIn
|
|
Rated Voltage(Un) |
AC 2P:230/240V 4P:400V/415V |
|
Residual operating current scope |
0.5 IIn1 IIn
|
|
Residual current off-time |
≤0.1s |
|
Type |
A,AC |
|
Ultimate short-circuit breaking capacity (Inc) |
6000A |
|
Endurance |
≥4000 |
|
Terminal protection |
IP20 |
Competitive Advantage
1. JL-FIN Operated Residual Current circuit breaker is With higher rated ultimate short circuit, up to 6KA.
2. JL-FIN Operated Residual Current circuit breaker is Reliable, accurate and convenient adjustment of product instantaneous action ensured.
3. JL-FIN Operated Residual Current circuit breaker’ service life of product has been greatly enhanced through specially designed tripping mechanism.
